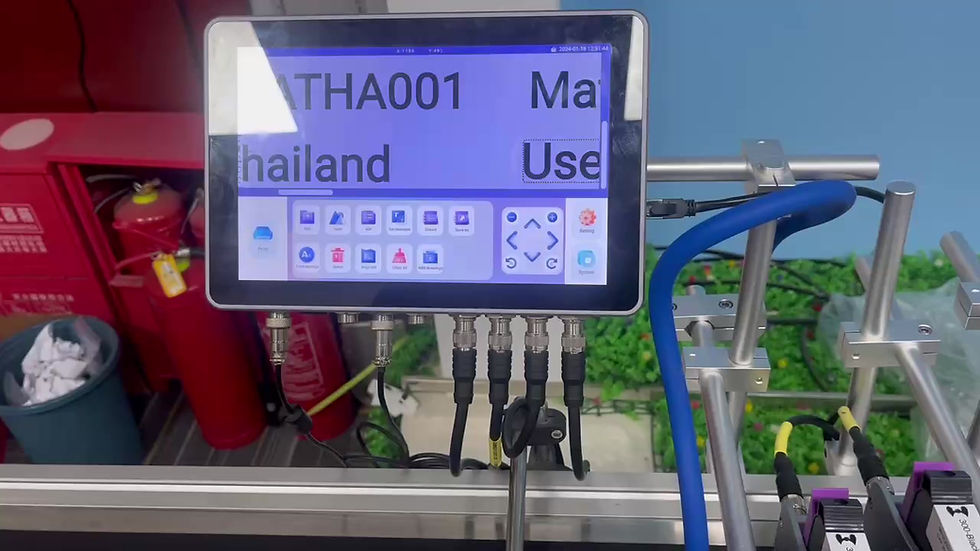

Tij online printer G10
Tij online printer G10
Max print speed up to 120m/min at 300*300dpi * Over 233 input methods, over 21 languages 1/2&1inchinkcartridgecanuseonasameprinter SupportQRCode,DataMatrix.GS1et
Support 1-4 heads,easy installation
Different user management
Support RS232 &network port communication
Date format can b e customed, Julian Year & Day Print content: variable data/text/photo/counter/
The ink volume of locked printer can be adjusted batch/scanner/randomnumber/date&timeetc SupportallWindowsfonts
Real-time saving to prevent data lose
Cost calculation of each printing
Lock screen to prevent mistouching
Alarm light ink warning setting
Counter can b e reset during print status
Params of each file can b e saved independently Support round-trip printing, repeated printing
FilescanbeexportedorimportedbyUSB
SPECIFICATION
SPECIFICATION
Screen: 10 inch capacitive screen (1024*800px)
QTY of print heads: 1-4
Printhead cables: 1.5m or customs, max is 8m
Ink cartridge types: half inch and one inch,solvent based, water based, oil based Printheight:usehalfinchcartridge:12.7-50mm,useoneinch25.4-100mm
Print speed: fix data: 120m/min (300*300dpi, grey level1) variabledata:75m/min(3kindsofvarialbedatas:QRcode+conter+time) Extenal connection: power supply/print heads/encoder/sensor/alarm light/USB/RS232
2022/01/10
2 0 7 2 0 1 1 0
Resolution: 300dpi
Support 1-4 heads, can b e Greylevel:-2to6,total8levels stitchedorseperately,good Throw distance: 2 - 5 m m
o r different applications Languages: Chinese/Japanese/Franch/Korean/German/Italian/Spanish/Portuguese/
Thai/Arabic/Persian etc 21+ languages
Print content: text/variable data/date &time/batch/counter/barcode/QR code/GS1/ logo/Database/real-time data e t c
Font: c a n b e added freely, support TTF/OTF/TTC format
Image format: jpg/png/bmp/css/web
PC software format: MS excel, ms access, SQL2000,SQL2005,SQL2008 Table format: xls/.xsx/.csv/.txt
Variabledataformat:csv/txt/xIs/xIsx
Codes: Code39/code128/UPCA/EAN8/EAN13/Data Matrix/EAN14/UPCE/INT25 ITF14/Code93/PDF417/Grid/Matrix/Code11/Code39+/Code16k/Code49 Flattermarken/VIN/NVE-18/Micro PDF417/Micro QR code/GS1 DataBar-14 GS1DataBar-EXP/GS1 DataBar-Ltd/GS1 DataBar-Stack/GS1 DataBar-Stack
Omni/GS1 DataBar-Exp-Stack/GS1 EAN128/GS1-DM/GS1-QRcode/ AztecCode,canbeaddedaccording
Date format: can be customs by yourself, Julian year/Julian day
System of numeration: Binary system/Octal/decimalism/hexadecimal Protocol /Network port protocol/serial port protocol (RS232)
Operation system: Android/Linux
CPU: Quad-core processor 1.5GHz
Storage capacity: 32G EMMC memory card, 12G capacity storage for user
Ink management: Automatically calculates left ink, and how many prints can
do. Which for estimating cost.
User management: add different users and assign them with different operations Electrical supply: Input: AC100-240V,50/60Hz
Output: 32V/3A (single head) or 32V/5A (2-4heads)
Operation Temperature: 0-45°C (32-113°F)
Humidity: 20-80%RH
* Specification subject to change without notice.
